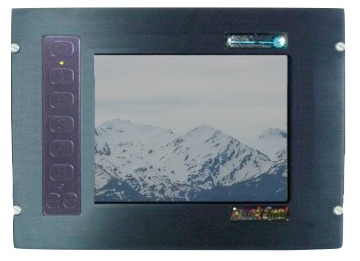

Black Opal RMU6H Flat Panel Display System
RMU6H : Remote Monitor Unit 6.4″ High Brightness
Dimensions
| Width | 228mm |
| Height | 166.5mm |
| Depth | 94mm |
| Mass | 2.6kg |
Suitability
- Land, sea and airborne applications;
- Rugged display, designed to withstand vibration, shock, and extended temperature operation. EM shielded.
Display
- 6.4” 4:3 LCD, 640 pixels x RGB x 480 lines (VGA) resolution, 18 bit (262k) colour scale,
8 bit (256) grey scale.
I/O (MultiVision System)
| Inputs | up to 4 analogue Std Def video + 1 PC |
| Display | up to 2 video and 1 PC simultaneously |
| Outputs | 1 analogue Std Def video and 1 PC |
Image Processing
- enhance function for smoke, rain, fog, etc;
- freeze frame;
- adjustable digital zoom;
- colourisation.
Readability
- readable in full direct sunlight (105 lux) (backlight adjustable to 900 nit)
- readable with night vision devices (green low intensity adjustable backlight
- anti reflection coated window
Power
- 20 to 33Vdc input (28V nominal).
Mounting
- 4 x PFSC35 Dzus fasteners.
Options
| Power | 10 to 19Vdc input; |
| Comms | 1,200 to 230.6k Baud for RS-232; Rs-422 to 10M Baud |
| Sealing | hermetic (land and sea), splash and drip proof (airborne) |
| Mounting | adjustable MillSpec bracket |
| Backlight | red night backlight |
