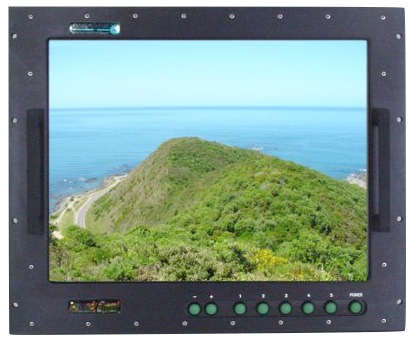

Black Opal RMU19H Flat Panel Display System
RMU19H : Remote Monitor Unit 19” High Brightness
Dimensions
| Width | 484mm |
| Height | 398.2mm |
| Depth | 117.5mm |
| Mass | 12.5kg |
Suitability
- Land, sea and airborne applications
- Ruggedized, designed to withstand vibration, shock, and extended temperature operation, EM shielded.
Display
- 19″ 5:4 LCD, 1,280 pixels x RGB x 1,024 lines (SXGA) resolution, 24 bit (16M) colour scale, 8 bit (256) grey scale.
I/O (MultiVision System)
| Inputs | up to 4 analogue Std Def video + 1 PC |
| Display | up to 2 video and 1 PC simultaneously |
| Outputs | 1 analogue Std Def video and 1 PC |
Image Processing
- enhance function for smoke, rain, fog, etc;
- freeze frame;
- adjustable digital zoom;
- colourisation.
Readability
- readable in full direct sunlight (105 lux) (backlight adjustable to 850 nit)
- readable with night vision devices (green low intensity adjustable backlight
- anti reflection coated window
Power
- 20 to 33Vdc input (28V nomial).
Mounting
- 19” rack-mount side plates (9U high) 8 x 6mm dia. clearance holes (4 per side).
Options
| Power | 10 to 19Vdc input |
| Comms | 1,200 to 230.6k Baud for RS-232; RS-422 to 10M Baud |
| Sealing | hermetic (land and sea), splash and drip proof (airborne) |
| Backlight | red night backlight |
