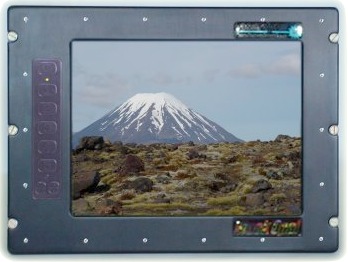

Black Opal RMU10HX Flat Panel Display System

RMU10HX : Remote Monitor Unit 10.4″ High Brightness XGA

Dimensions

Width307mm
Height229mm
Depth96mm
Mass4.7kg

Suitability

  • Land, sea and airborne applications
  • Rugged design to withstand vibration, shock, and extended temperature operation, EM shielded.

Display

  • 10.4” 4:3 LCD, 1,024 pixels x RGB x 768 lines (XGA) resolution, 18 bit (262k) colour scale, 8 bit (256) grey scale.

I/O (MultiVision System)

Inputsup to 4 analogue Std Def video + 1 PC
Displayup to 2 video and 1 PC simultaneously
Outputs1 analogue Std Def video and 1 PC

Image Processing

  • enhance function for smoke, rain, fog, etc;
  • freeze frame;
  • adjustable digital zoom;
  • colourisation.

Download print-friendly version of this pageGo to Library (all documents for this model)

Readability

  • readable in full direct sunlight (105 lux) (backlight adjustable to 1,700 nit)
  • readable with night vision devices (green low intensity adjustable backlight
  • anti reflection coated window

Power

  • 20 to 33Vdc input (28V nomial).

Comms

  • RS-232 9,600 Baud

Mounting

  • 6 x PFSC35 Dzus fasteners.

Options

Power10 to 19Vdc input
Comms1,200 to 230.6k Baud for RS-232; RS-422 to 10M Baud
Sealinghermetic (land and sea), splash and drip proof (airborne)
Mountingadjustable MillSpec bracket
Backlightred night backlight
