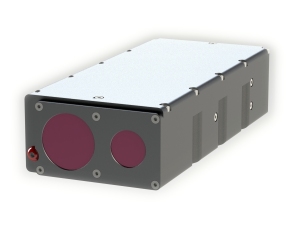

RangePRO GSLR-2K Laser Rangefinder Module

GSLR-2K: General Sighting Laser Rangefinder – 2 to 5km range class

Dimensions

Length 866.5mm
Width 87mm
Height 46.5mm
Mass 0.745kg

Suitability

  • OEM module for integration into sensing, surveillance, tracking & weapons stations, and thermal imaging cameras;
  • for land, sea or airborne applications;
  • designed to withstand vibration, shock, and extended temperature operation, EM shielded.

Rangefinding

Read-out limits (factory selectable)

Minimum 50
Maximum 12,000

Performance*

man (0.45×1.8m)** 2,000
standard (1x1m)** 2,500
vehicle (2.3×2.3m)** 4,000
*Standard Clear atmosphere; Extinction Coefficient 0.0448 @ 1,570nm
(Modtran 3 V1.5; tropical atmosphere, maritime aerosols, Jan.);
sea level visibility = 23.5km.
** Target albedo = 0.1 @ 1,570nm.

Sealing

  • Hermetic

Laser Safety

  • Class 1 eyesafe***
***AS/NZS 2211.1, IEC825-1

Transmitter

Laser type Nd:YAG/OPO
Wavelength 1,565 to 1,570 nm (1,570 nominal)
Output < 6mJ
Ranging rate single shot (5/minute, 10 max.)

Detector

  • InGaAs with time variant gain

Range Determination

  • Signals from the detector are digitally sampled and examined to determine all potential real target returns. An adaptive range threshold compensates for changing noise levels, maximising system capability under varying conditions.

Power

  • 10 to 32Vdc input

Comms

  • RS-422 19,200 Baud

Mounting

  • 3-point mount;¬†guide pins.

Options

reference laser externally mounted red laser diode
